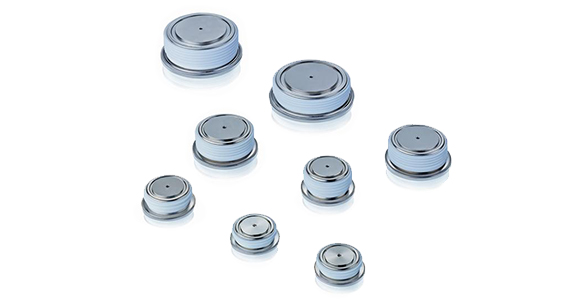

Standard recovery diodes

Standard recovery diodes

Diodes can be subdivided into two main classes: rectifier diodes and fast diodes. Rectifier diodes are split into two sub-classes: Normal recovery diodes and avalanche diodes. Rectifier diodes are generally used for conversion of AC (alternating current) to DC (direct current).


Normal recovery diodes are optimized with respect to low conduction losses and are able to handle very large currents.

Avalanche diodes are self protected against transient over-voltages.

For downloading and printing of data sheets in pdf format, click on the part numbers.



Avalanche diodes
Part number
VRRM (V)IFAVM (A)IFSM (kA)Package* (mm)
5SDA 11D1702 1700131015.060/34
5SDA 27F2002 2000270031.075/47
5SDA 24F2303 2300235029.075/47
5SDA 10D2303 2300114013.560/34
5SDA 09D2604 2600102011.560/34
5SDA 08D3205 32009109.260/34
5SDA 21F3204 3200211026.075/47
5SDA 07D3806 38007907.660/34
5SDA 16F3806 3800162020.575/47
5SDA 06D5007 50006907.060/34
5SDA 14F5007 5000141017.575/47




Normal recovery diodes
Part number
VRRM (V)IFAVM (A)IFSM (kA)Package* (mm)
5SDD 70H2000 2000703065.0 101.5/63
5SDD 65H2400 2400  652059.0 101.5/63
5SDD 51L28002800538065.0120/78
5SDD 60N28002800683087.0151/100
5SDD 60Q28002800738587.0151/100
5SDD 11D2800 2800128515.060/34
5SDD 11T2800 2800128515.058.5/34
5SDD 24F2800 2800260030.075/47
5SDD 48H3200 3200471061.0101.5/63
5SDD 54N40004000520085.0151/100
5SDD 40H4000 4000384746.0101.5/63
5SDD 39K4000 4000394146.0101.5/63
5SDD 08T5000 5000102812.058.8/34
5SDD 08D5000 5000102812.060/34
5SDD 20F5000 5000197824.075/47
5SDD 36K5000 5000363845.0101.5/63
5SDD 38H5000 5000381445.0101.5/63
5SDD 33L55005500348046.0120/78
5SDD 50N55005500457073.0151/100
5SDD 06D6000 600066210.558.5/34
5SDD 09D6000 600084511.058.5/34
5SDD 10F6000 6000136317.574.5/47
5SDD 14F6000 6000136317.574.5/47
5SDD 31H6000 6000324640.0101.5/63
5SDD 31K6000 6000309740.0101.5/63

*Note: maximum diameter / pole-piece diameter
